• Bumper, front chrome
• Bumper, rear chrome with bumper CornerSteps
• Cargo ties downs (4), movable upper (Deleted when (ZW9) pickup box delete is ordered.)
• CornerStep, rear bumper
• Door handles, chrome
• Fog lamps, front, halogen
• Glass, deep-tinted
• Grille surround, chrome
• Headlamps, halogen projector with LED signature
• LED Lighting, cargo box with switch on center switch bank (Deleted when (ZW9) pickup box delete is ordered.)
• Lamps, cargo area, cab mounted with switch on center switch bank
• Mirrors, outside heated power-adjustable vertical camper, manual-folding and extending, black. Includes integrated turn signal indicators consisting of 50 square inch flat mirror surface positioned over a 20 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable).
• Moldings, bodyside, chrome

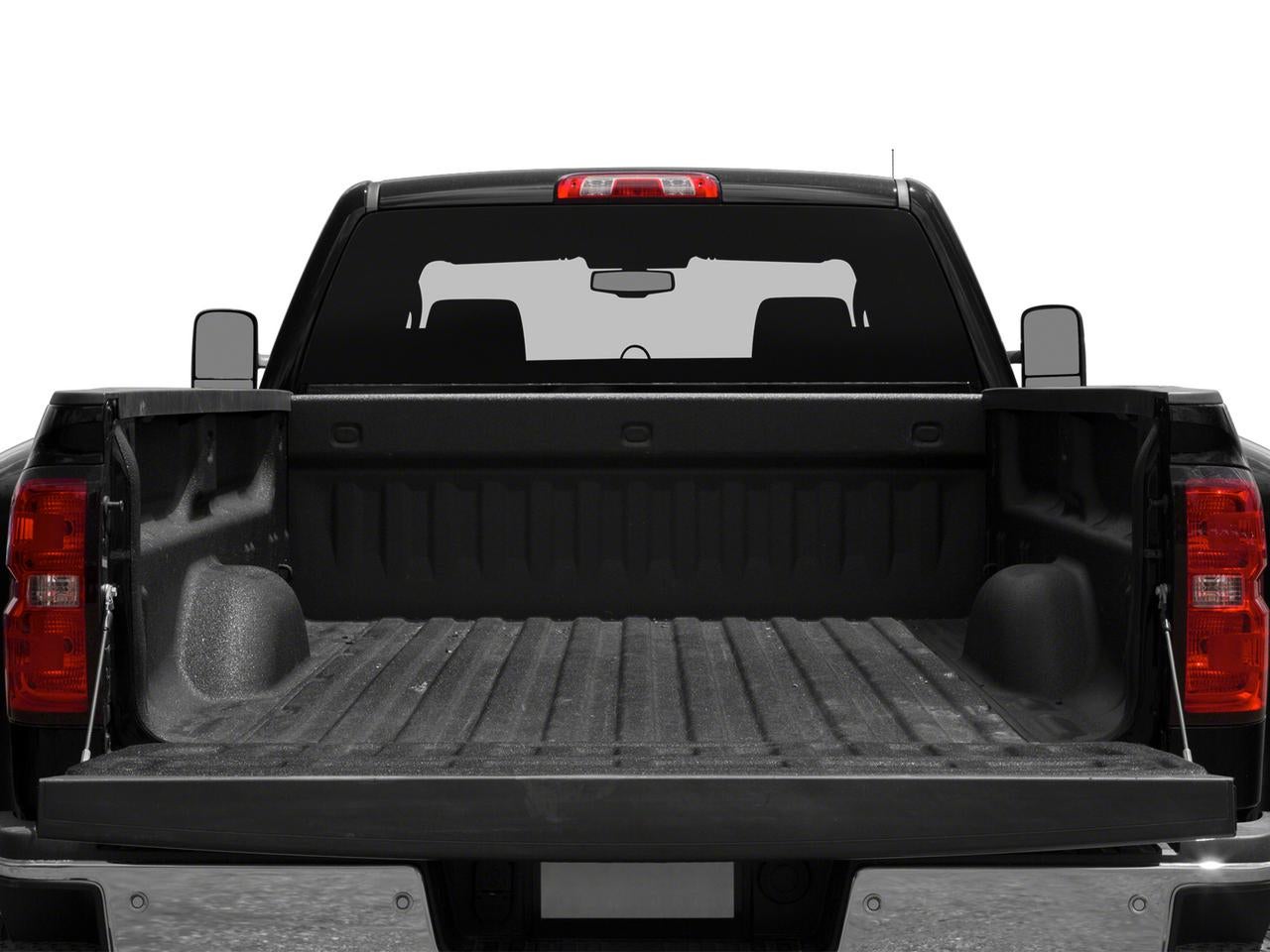

• Tailgate and bed rail protection caps, top
• Tailgate, EZ-Lift and Lower (Deleted when (ZW9) pickup box delete is ordered.)
• Tailgate, locking, utilizes same key as ignition and door (Deleted with (ZW9) pickup box delete.)
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door (Not included when (ZW9) pickup box delete or (9J4) rear bumper delete is ordered.)

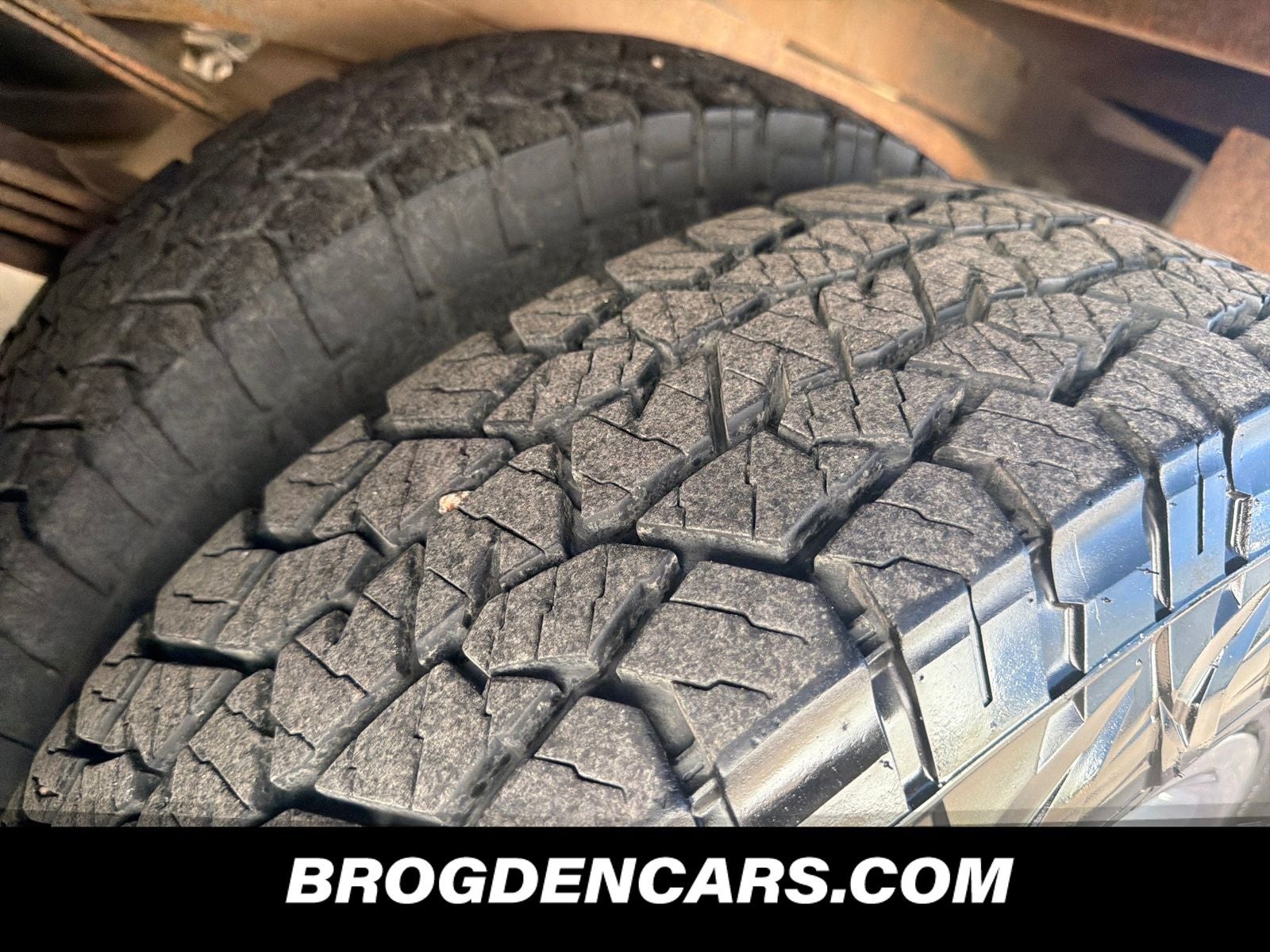

• Tires, LT265/70R18E all-season, blackwall (Requires single rear wheels.)
• Wheelhouse liners, rear (Not available with dual rear wheels. Deleted with (ZW9) pickup box delete.)

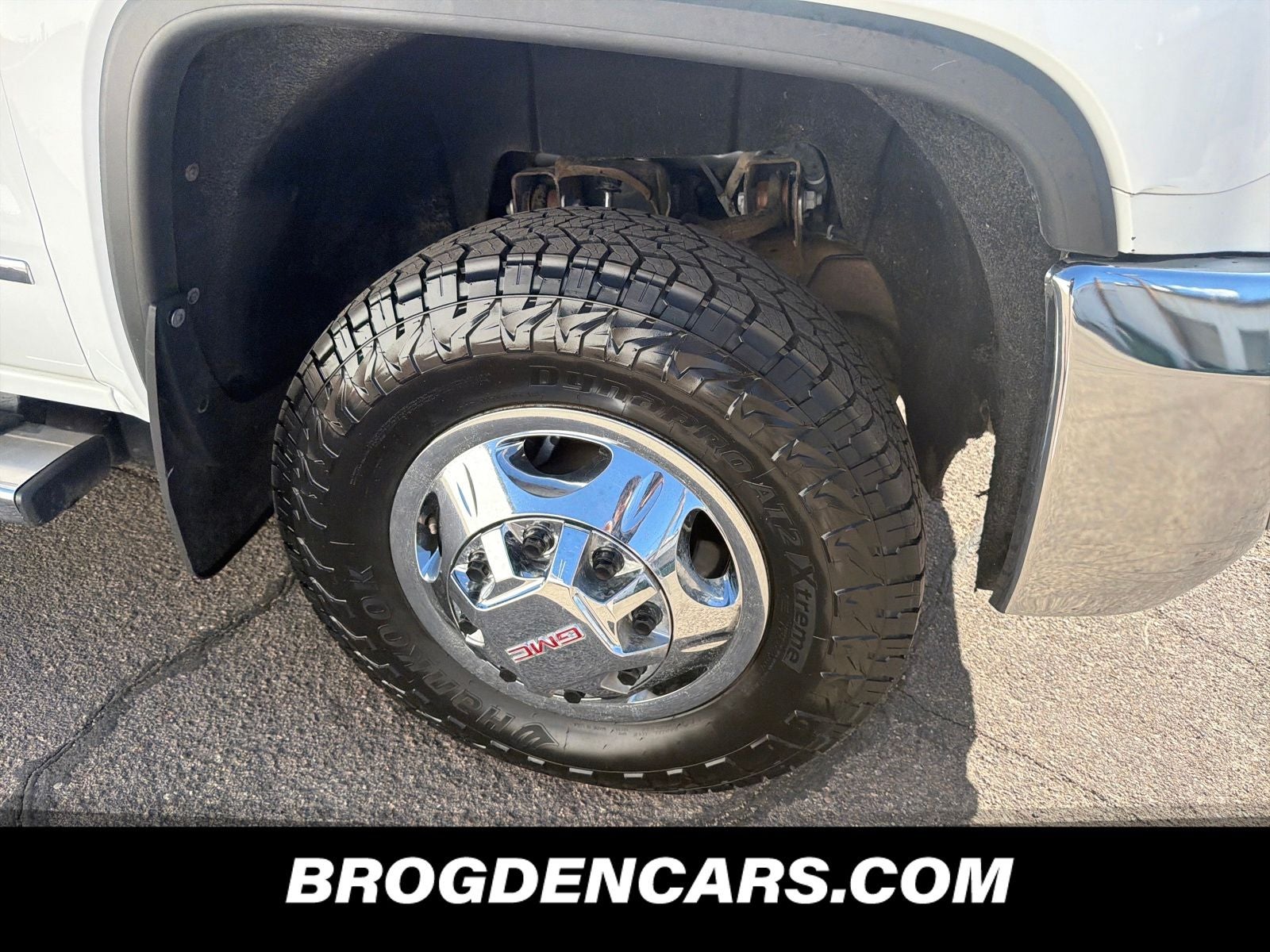

• Wheels, 18" (45.7 cm) forged polished aluminum includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered. (Requires single rear wheels.)

• 110-Volt AC Power Outlet
• 150 Amps Alternator
• 4-Wheel Disc Brakes
• 4.2" Diagonal Color Display Driver Info Center
• 6 Speakers
• 6-Speaker Audio System
• ABS brakes
• AM/FM radio: SiriusXM
• Adjustable pedals
• Air Conditioning
• Auto-Dimming Inside Rear-View Mirror
• Auto-dimming Rear-View mirror
• Automatic temperature control
• Bodyside moldings
• Brake assist
• Bumpers: chrome
• CD player
• Chrome Bodyside Moldings
• Chrome Door Handles
• Chrome Power-Adjustable Heated Outside Mirrors
• Color-Keyed Carpeting Floor Covering
• Compass
• Deep-Tinted Glass
• Delay-off headlights
• Driver & Front Passenger Visors
• Driver door bin
• Driver vanity mirror
• Dual front impact airbags
• Dual-Zone Automatic Climate Control
• Duramax Plus Package
• EZ-Lift & Lower Tailgate
• Electric Rear-Window Defogger
• Electronic Shift Transfer Case
• Electronic Stability Control
• Emergency communication system: OnStar Directions & Connections
• Exhaust Brake
• Exterior Parking Camera Rear
• Floor Mounted Console
• Front 40/20/40 Split Bench Seat
• Front Center Armrest w/Storage
• Front Full Feature Bucket Seats
• Front Halogen Fog Lamps
• Front License Plate Kit
• Front anti-roll bar
• Front dual zone A/C
• Front fog lights
• Front reading lights
• Front wheel independent suspension
• Fully automatic headlights
• Garage door transmitter
• Halogen Projector Headlamps w/LED Signature
• Heated & Cooled Driver & Front Passenger Seats
• Heated Driver & Front Passenger Seats
• Heated door mirrors
• Heated front seats
• Illuminated entry
• Integrated Trailer Brake Controller
• LED Cargo Box Lighting
• Leather Wrapped Heated Steering Wheel
• Leather-Appointed Seat Trim
• Leather-Wrapped Steering Wheel
• Manual Tilt-Wheel/Telescoping Steering Column
• Memory seat
• Occupant sensing airbag
• OnStar 6 Months Directions/Connections
• OnStar w/4G LTE
• Outside temperature display
• Overhead console
• Panic alarm
• Passenger door bin
• Passenger vanity mirror
• Pedal memory
• Power Adjustable Pedals
• Power Windows
• Power door mirrors
• Power driver seat
• Power passenger seat
• Power steering
• Power windows
• Preferred Equipment Group 4SA

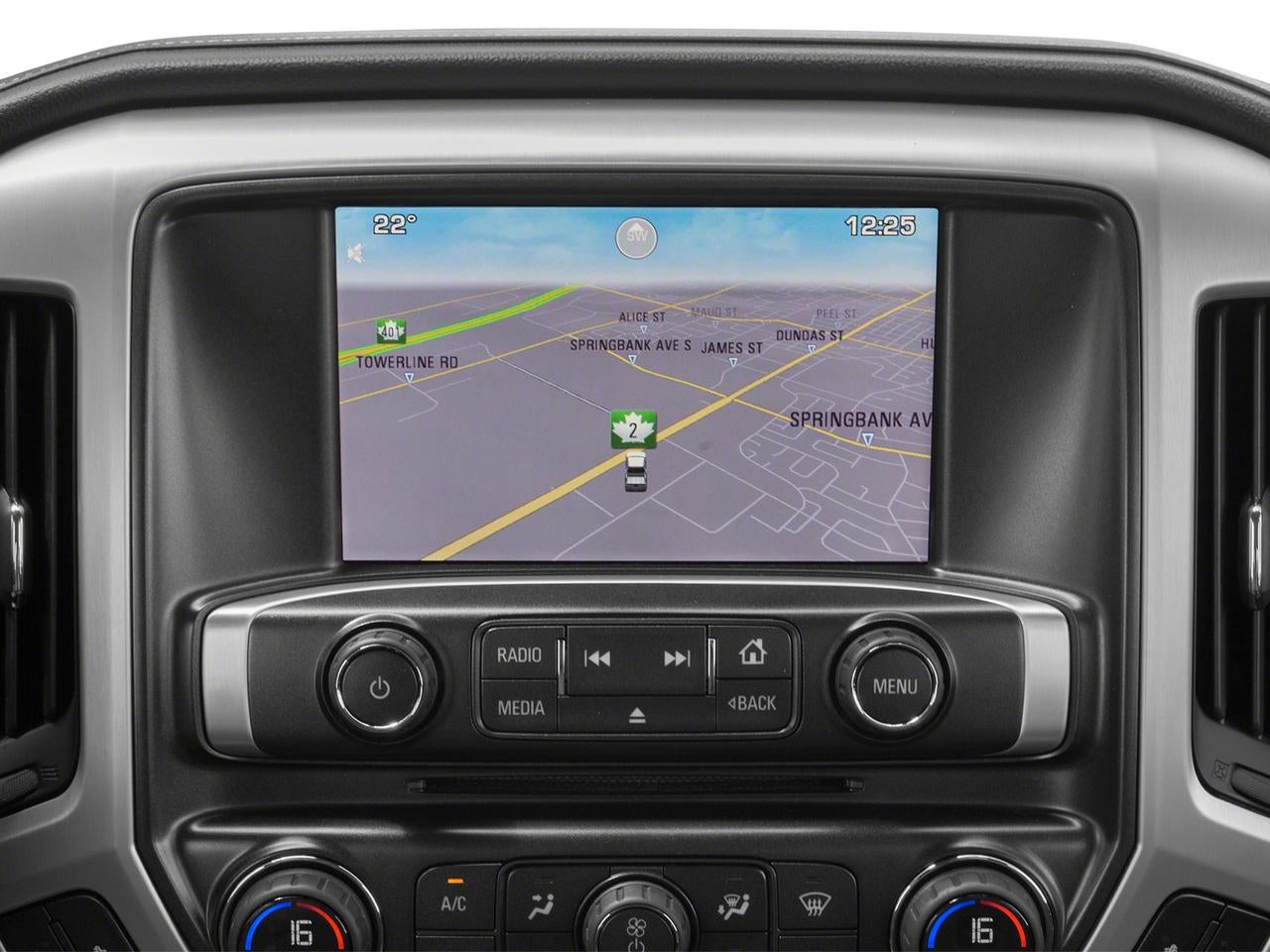

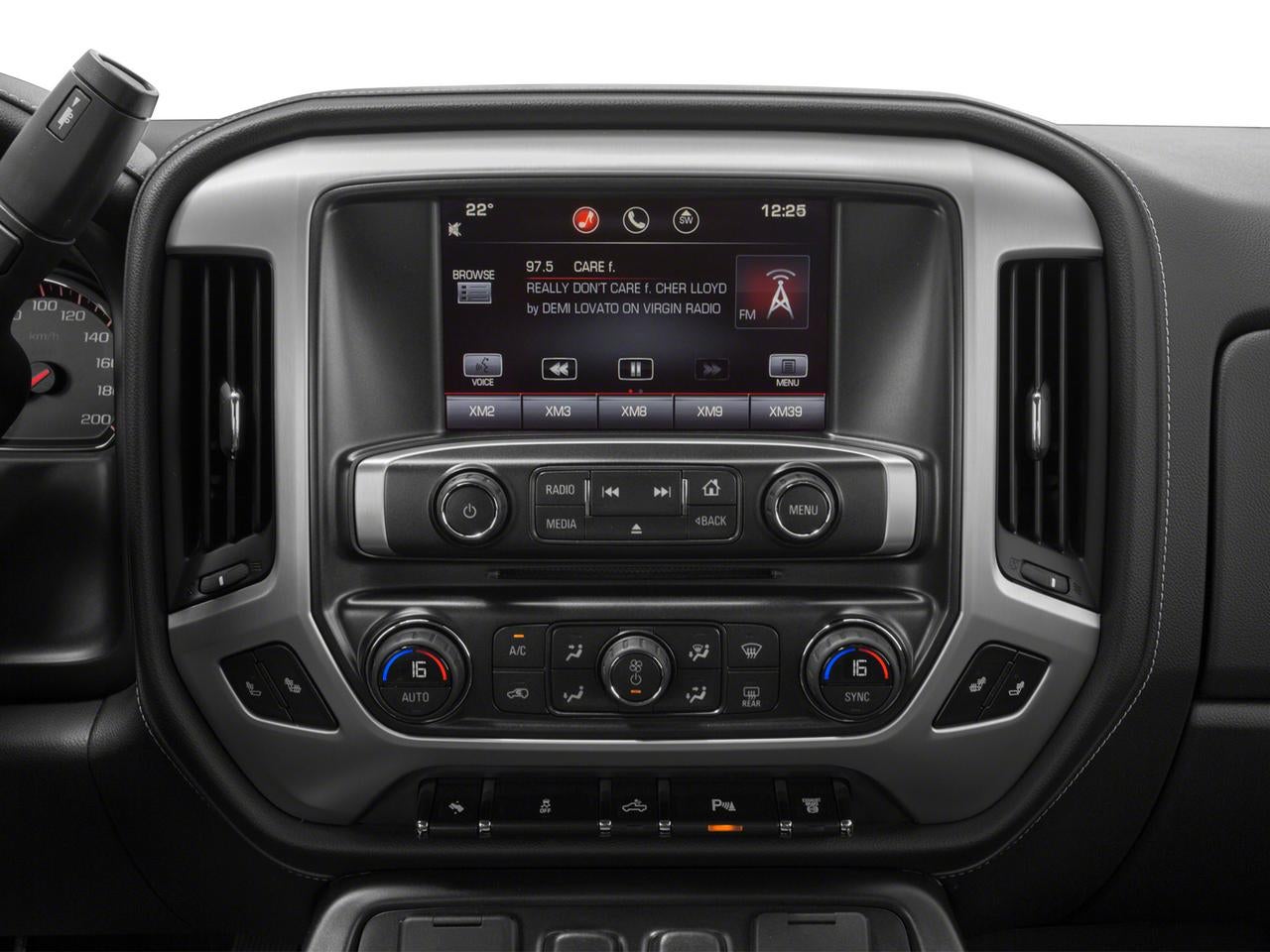

• Radio: AM/FM Stereo w/8" Diagonal Color Touch Nav.
• Radio: AM/FM Stereo w/8" Diagonal Color Touch Screen

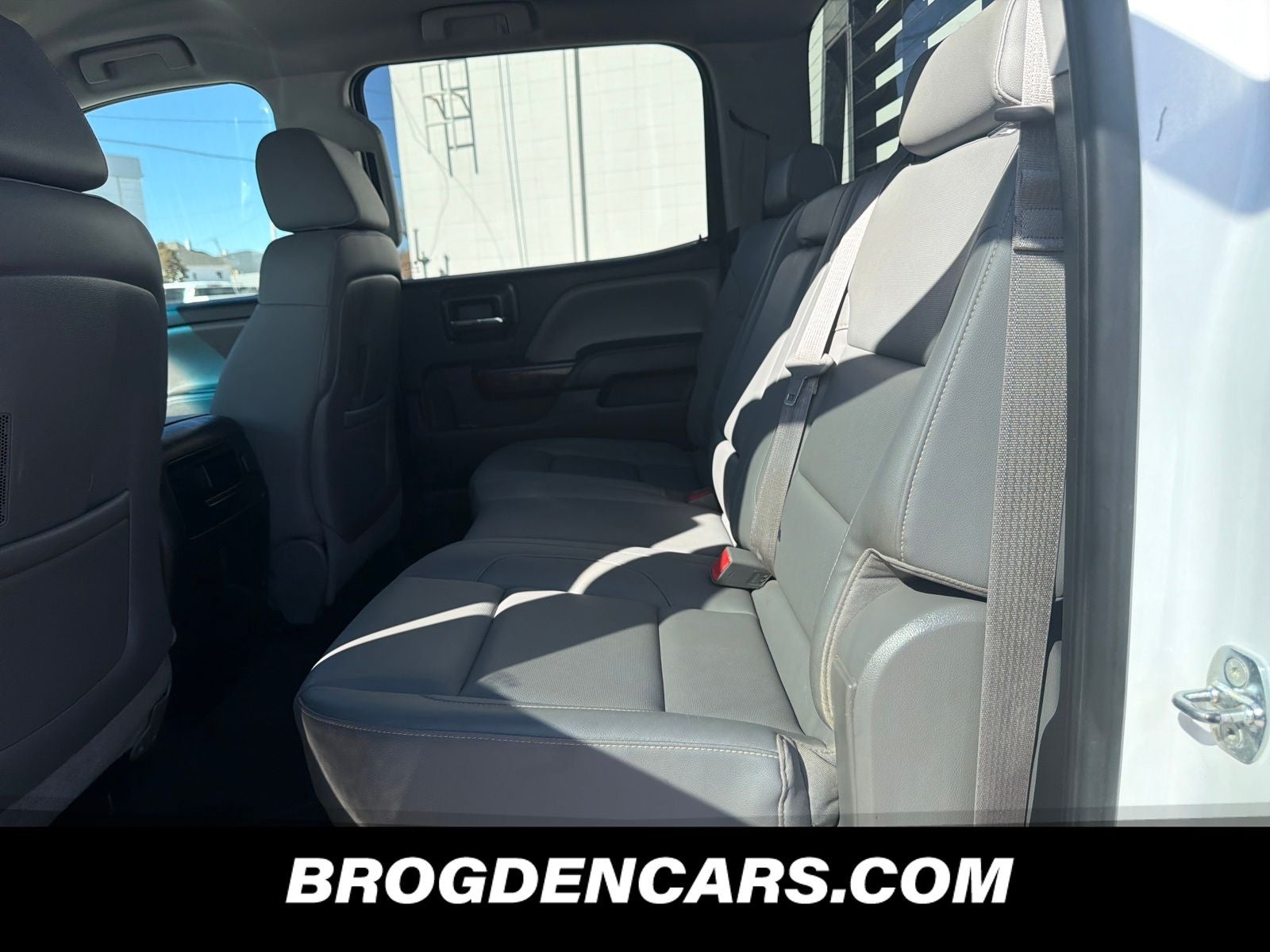

• Rear 60/40 Folding Bench Seat (Folds Up)
• Rear Vision Camera w/Dynamic Guide Lines
• Rear reading lights
• Rear seat center armrest
• Rear step bumper
• Rear window defroster
• Remote Keyless Entry
• Remote Vehicle Starter System
• Remote keyless entry
• Security system
• Single-Slot CD/MP3 Player
• SiriusXM Satellite Radio
• Speed control
• Split folding rear seat
• Spray-On Pickup Box Bed Liner w/GMC Logo
• Standard Suspension Package
• Steering Wheel Audio Controls
• Steering wheel mounted audio controls
• Tachometer
• Telescoping steering wheel
• Tilt steering wheel
• Traction control
• Trailering Equipment
• Trip computer
• Turn signal indicator mirrors
• Ultrasonic Front & Rear Park Assist
• Unauthorized Entry Theft-Deterrent System
• Universal Home Remote
• Variably intermittent wipers
• Voltmeter

• Air conditioning, dual-zone automatic climate control
• Assist handle, front passenger and driver on A-pillars
• Cruise control, steering wheel-mounted
• Defogger, rear-window electric
• Door locks, power
• Driver Information Center 4.2-inch diagonal color display, includes driver personalization, warning messages and vehicle information
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Double Cab and Crew Cabs include second row floor mats)
• Mirror, inside rearview auto-dimming
• Pedals, power-adjustable
• Power outlet, 110-volt AC
• Remote Keyless Entry
• Remote vehicle starter system
• Seat trim, Leather-appointed front seats
• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Seating, heated driver and front passenger

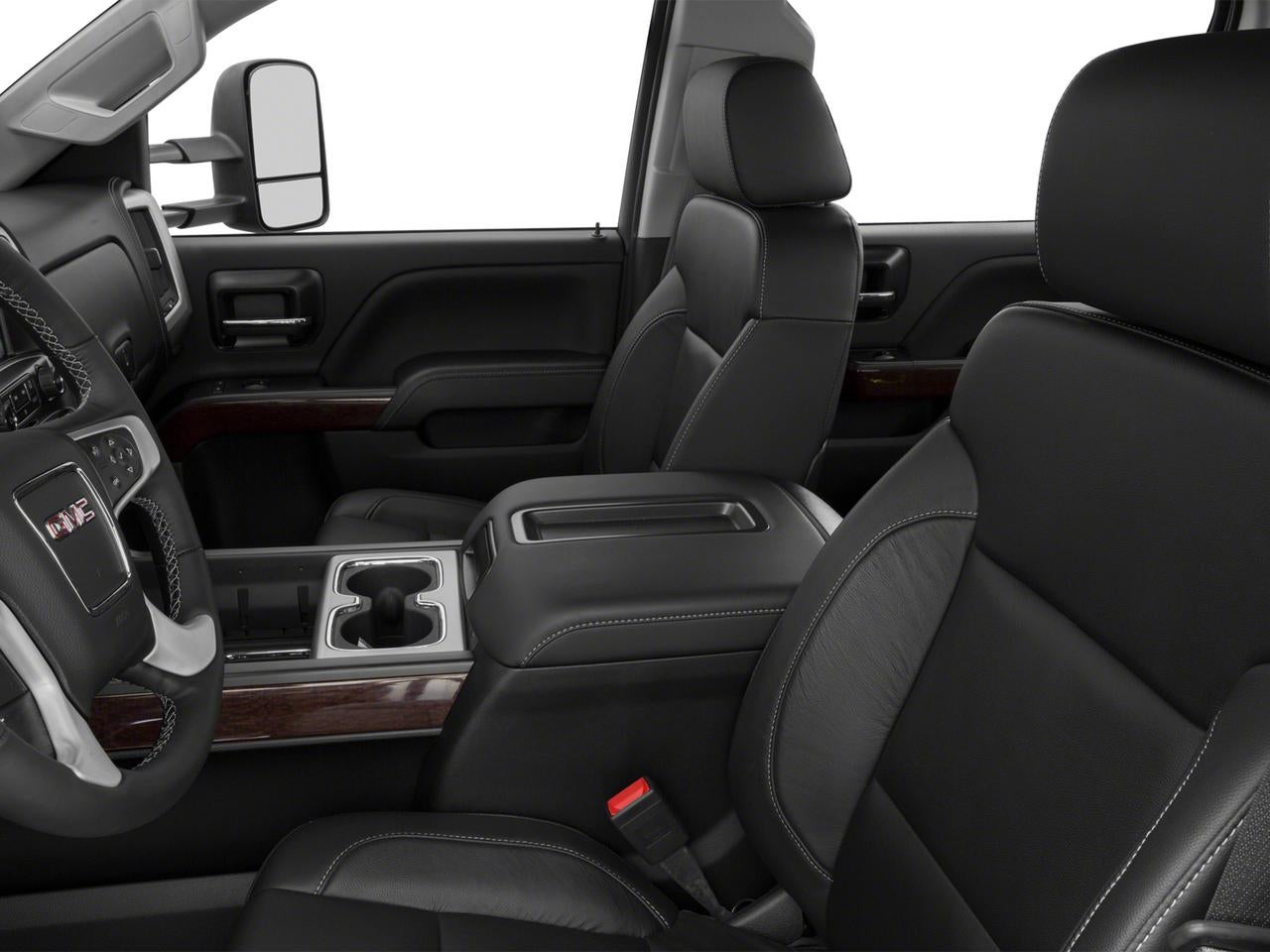

• Seats, front 40/20/40 leather-appointed split-bench, 3-passenger with (KA1) heated seat cushions and seat backs. Includes 10-way power driver and front passenger seat adjusters, including driver/front passenger power recline, driver/front passenger power lumbar, 2- position driver memory and adjustable outboard head restraints. (Upgradeable to (AN3) front full-feature leather-appointed bucket seats.)
• Steering column, manual Tilt-Wheel
• Steering wheel audio controls
• Steering wheel, leather-wrapped with audio and cruise controls
• Theft-deterrent system, unauthorized entry
• Universal Home Remote (Not included when (TRW) provision for cab roof-mounted lamp or (VYU) Snow Plow Prep Package are ordered.)
• Visors, driver and front passenger illuminated vanity mirrors

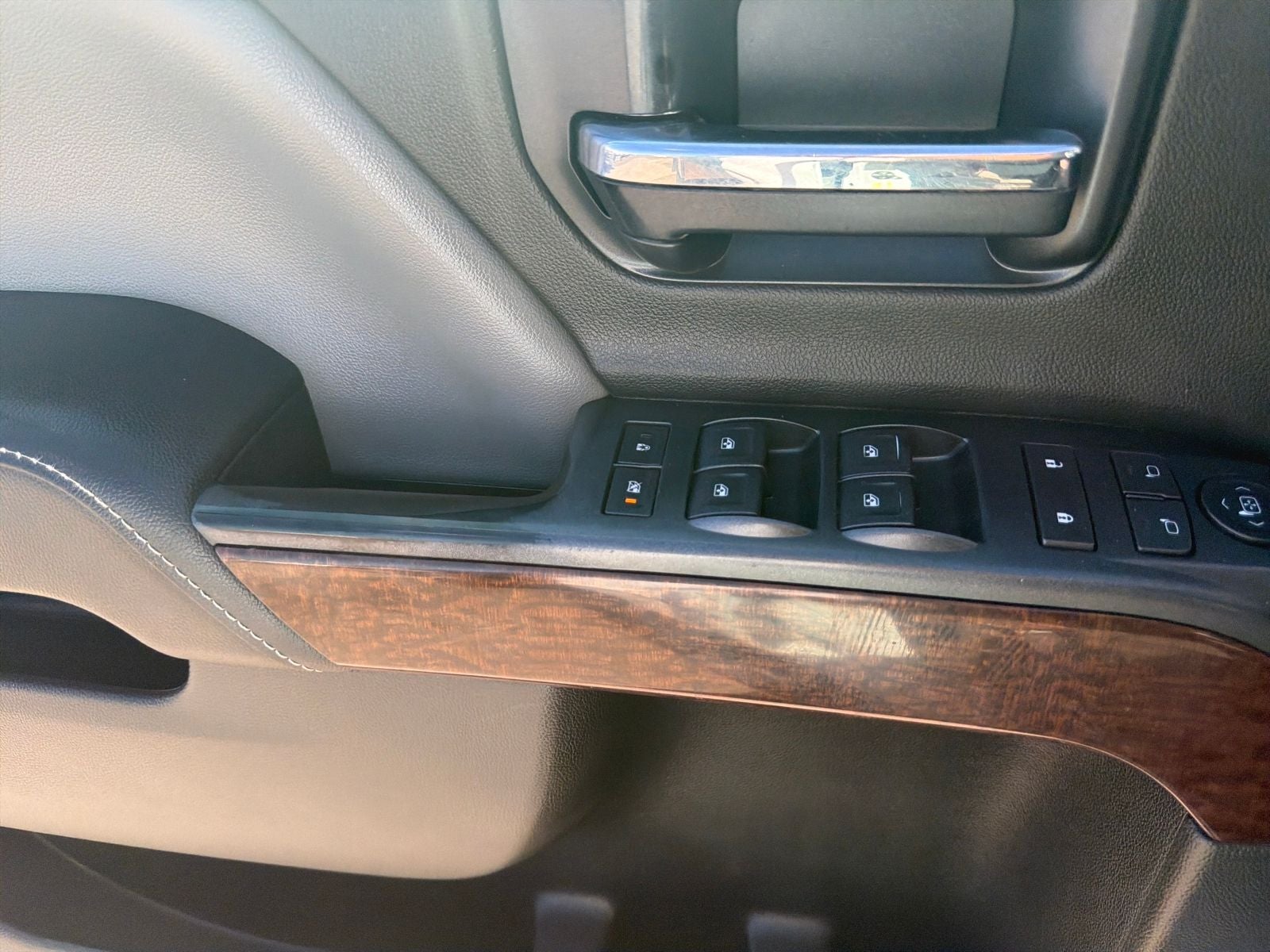

• Windows, power with driver express up and down and express down on all other windows

• Air cleaner, high-capacity
• Alternator, 150 amps
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc (Requires single rear wheels.)
• Differential, heavy-duty locking rear
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• Pickup box, Wideside
• Recovery hooks, front, frame-mounted, black
• Steering, Recirculating ball
• Suspension Package, Standard includes 51mm twin tube shock absorbers and 33mm front stabilizer bar
• Trailer brake controller, integrated (Standard with (E63) pickup box. Available to order with (ZW9) pickup box delete.)
• Trailering equipment Trailering hitch platform 2.5" with a 2.0" insert for HD, 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector to hook up parking lamps, backup lamps, right and left turn signals, an electric brake lead, battery and a ground, The trailer connector also includes the 4-way for use on trailers without brakes - park, brake/turn lamps (Deleted when (ZW9) pickup box delete or (9J4) rear bumper delete is ordered.)
• Transfer case, electronic shift with rotary dial controls (Requires 4WD models.)

• Air bags, frontal, driver and right front passenger, single stage
• Daytime Running Lamps with automatic exterior lamp control
• OnStar, 6 months of Directions and Connections plan (Visit onstar.com for coverage map, details and system limitations. Services vary by model and conditions.)
• Rear Vision Camera with dynamic guide lines (Not included when (ZW9) pickup box delete or (9J4) rear bumper delete is ordered.)
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist

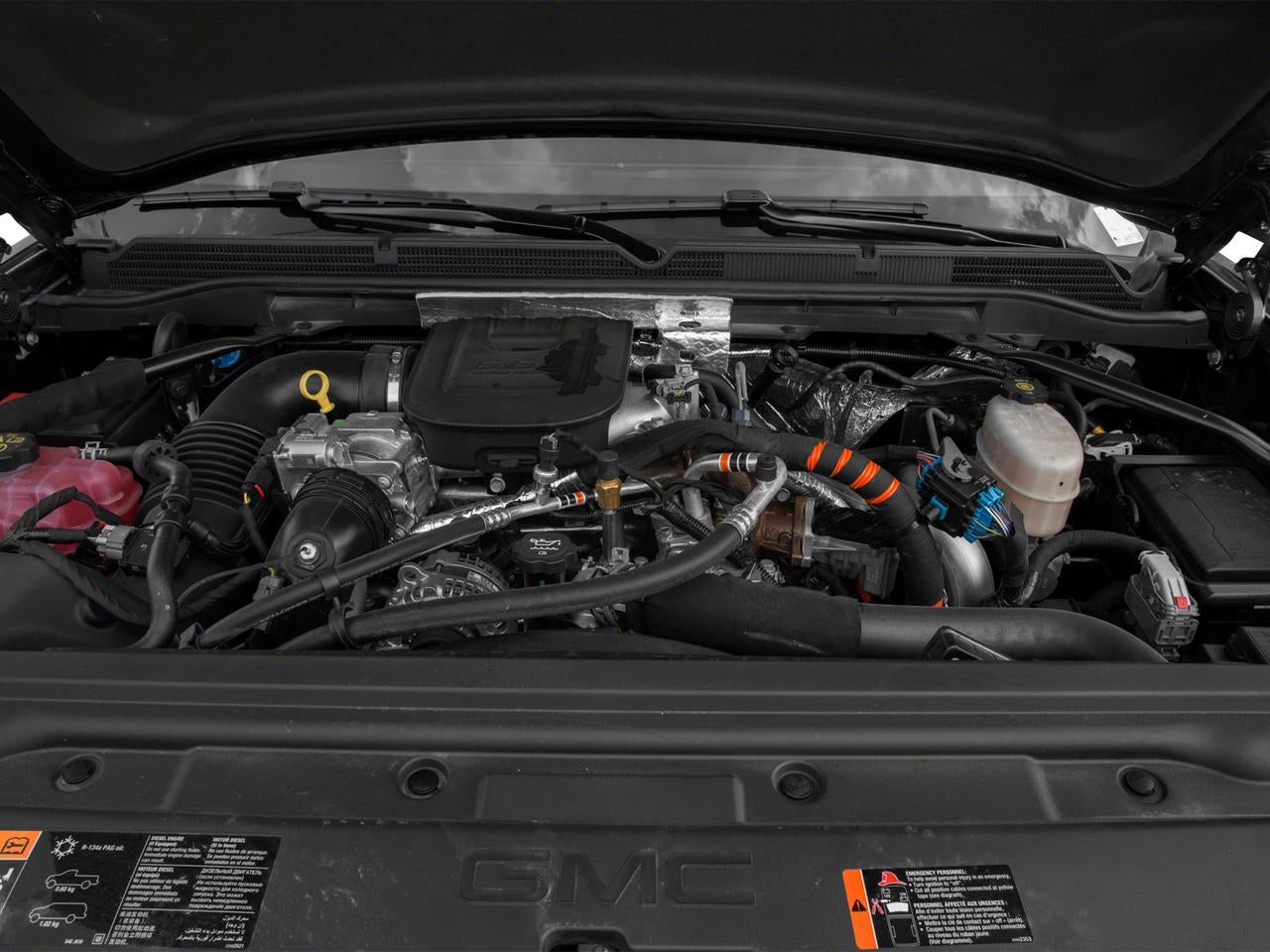

ENGINE, DURAMAX 6.6L TURBO DIESEL V8, B20-DIESEL COMPATIBLE

• (397 hp [296.0 kW] @ 3000 rpm
• 765 lb-ft of torque [1032.8 N-m] @ 1600 rpm)

• Duramax Plus Package
• Preferred Equipment Group 4SA
• Standard Suspension Package
• Trailering Equipment
• 6 Speakers
• 6-Speaker Audio System
• AM/FM radio: SiriusXM
• CD player
• Radio: AM/FM Stereo w/8" Diagonal Color Touch Nav.
• Radio: AM/FM Stereo w/8" Diagonal Color Touch Screen
• Single-Slot CD/MP3 Player
• SiriusXM Satellite Radio
• Steering Wheel Audio Controls
• Air Conditioning
• Automatic temperature control
• Dual-Zone Automatic Climate Control
• Electric Rear-Window Defogger
• Front dual zone A/C
• Rear window defroster
• 110-Volt AC Power Outlet
• Memory seat
• Pedal memory
• Power driver seat
• Power steering
• Power Windows
• Power windows
• Remote Keyless Entry
• Remote keyless entry
• Remote Vehicle Starter System
• Steering wheel mounted audio controls
• Universal Home Remote
• Leather Wrapped Heated Steering Wheel
• Manual Tilt-Wheel/Telescoping Steering Column
• Traction control
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Emergency communication system: OnStar Directions & Connections
• Front anti-roll bar
• Front wheel independent suspension
• Occupant sensing airbag
• Brake assist
• Electronic Stability Control
• Exterior Parking Camera Rear
• Delay-off headlights
• Front fog lights
• Front Halogen Fog Lamps
• Fully automatic headlights
• Panic alarm
• Security system
• Unauthorized Entry Theft-Deterrent System
• Speed control
• 150 Amps Alternator
• Engine Block Heater
• Exhaust Brake
• Bodyside moldings
• Bumpers: chrome
• Chrome Bodyside Moldings
• Chrome Door Handles
• Chrome Power-Adjustable Heated Outside Mirrors
• Electronic Shift Transfer Case
• EZ-Lift & Lower Tailgate
• Front License Plate Kit
• Halogen Projector Headlamps w/LED Signature
• Heated door mirrors
• LED Cargo Box Lighting
• Power door mirrors
• Rear step bumper
• Spray-On Pickup Box Bed Liner w/GMC Logo
• Turn signal indicator mirrors
• 4.2" Diagonal Color Display Driver Info Center
• Adjustable pedals
• Auto-Dimming Inside Rear-View Mirror
• Auto-dimming Rear-View mirror
• Color-Keyed Carpeting Floor Covering
• Compass
• Driver & Front Passenger Visors
• Driver door bin
• Driver vanity mirror
• Floor Mounted Console
• Front reading lights
• Garage door transmitter
• Illuminated entry
• Leather-Wrapped Steering Wheel
• OnStar 6 Months Directions/Connections
• OnStar w/4G LTE
• Outside temperature display
• Overhead console
• Passenger vanity mirror
• Power Adjustable Pedals
• Rear reading lights
• Rear seat center armrest
• Rear Vision Camera w/Dynamic Guide Lines
• Tachometer
• Telescoping steering wheel
• Tilt steering wheel
• Trip computer
• Ultrasonic Front & Rear Park Assist
• Voltmeter
• Front 40/20/40 Split Bench Seat
• Front Full Feature Bucket Seats
• Heated & Cooled Driver & Front Passenger Seats
• Heated Driver & Front Passenger Seats
• Heated front seats
• Leather-Appointed Seat Trim
• Power passenger seat
• Rear 60/40 Folding Bench Seat (Folds Up)
• Split folding rear seat
• Front Center Armrest w/Storage
• Passenger door bin
• Integrated Trailer Brake Controller
• Deep-Tinted Glass
• Variably intermittent wipers

• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 7050
• Curb Weight - Front (lbs): 4652
• Curb Weight - Front (lbs): 3930
• Curb Weight - Rear (lbs): 3000
• Curb Weight - Rear (lbs): 2962
• Gross Vehicle Weight Rating Cap (lbs): 11000
• Gross Combined Wt Rating (lbs): 24500
• Gross Combined Wt Rating (lbs): 20500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 16900
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1690
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1370
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 16900
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 13700
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4225
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3425
• Maximum Trailering Capacity (lbs): 22600
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 7050
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 5600
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 7050
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51.00
• Shock Absorber Diameter - Rear (mm): 51.00
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: QWF
• Rear Tire Order Code: QWF
• Front Tire Size: LT265/70R18E
• Rear Tire Size: LT265/70R18E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 18 x 8.0
• Rear Wheel Size (in): 18 x 8.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: 16.00
• Steering Ratio (:1), At Lock: N/A
• Turning Diameter - Curb to Curb (ft): 56.1
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 167.70
• Length, Overall w/o rear bumper (in): 258.4
• Width, Max w/o mirrors (in): 80.51
• Height, Overall (in): 78.07
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 151.10
• Cab to Axle (in): 55.24
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 39.41
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.53
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.76
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 51.02
• Cargo Box (Area) Height (in): 21.22
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 76.3
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Front Hip Room (in): 60.73
• Second Head Room (in): 40.50
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 64.33
• Second Hip Room (in): 60.24
• Summary
• Vehicle Name: GMC Sierra 3500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
